Summit 2
The spacious and light semi-geodetic tent with very good stability in the wind is suitable for mountaineering, hiking and for anyone who appreciates its rigid structure with three poles and four crossing points, exceptionally roomy vestibule and low weight.
Rain fly is made of Polyester with a polyurethane coating, guaranteeing a water column of 4,000 mm. The seams are taped with waterproof tape.
The floor is made of Nylon with a Polyurethane coating, providing a 10,000mm water column.
The rods consist of duralumin segments (7001 T6) with a diameter of 9.5 mm.
Technical specification
| Features: | |
| Weight | 3.6 kg |
| Weight without inner tent | 2.7 kg |
| Package Size | ⌀15 x 52 cm |
| Number of people | 1 - 2 |
| Amount of entrances | 2 |
| Construction type | Cupola |
| Amount of vents | 2 |
| Number of poles / crossing points | 3 / 4 |
| Buildable without a bedroom | Yes |
| Height of tent (bedroom) | 120 (115) cm |
| Siliconised | No |
| Taped seams | Yes |
| Number of pins | 20 |
| Category | Trekking |
| Material | |
| Material of poles | Dural 7001 T6 |
| Pole diameter | 9.5 mm |
| Flysheet material | Polyester, PU coating 4 000mm H2O |
| Groundsheet material | Nylon, PU coating 10 000mm H2O |
Description

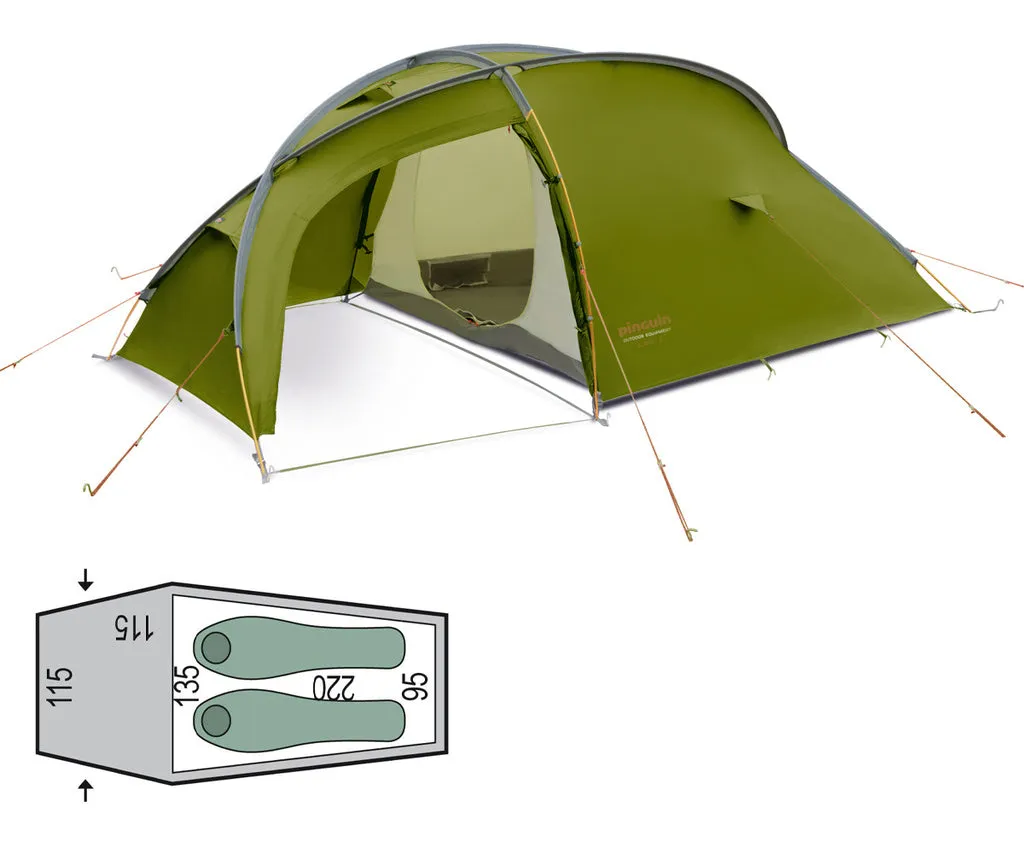

The tent is double-layered and consists of an inner tent and an outer layer - rain fly. The inner tent has a trapezoidal floor plan with one entrance. The tent has a spacious vestibule with two entrances. The vestibule can be used to store luggage, or provide leeward when cooking.
Concept
The tent is based on the principle that the tent pole structure strung in the sleeves is outside the rain fly. Rain fly and the inner tent (which is suspended under the tropiko) are erected at the same time after threading the rods through the sleeves. The advantage of this method is that the inner tent can be detached from the rain fly and the tropic can then be erected separately. This will give us a single-shell tent without a floor.
Ventilation
It is located at the top of the dome of the rain fly. The canopies of the ventilation windows are shaped so that they are not folded by the wind, if necessary they can be closed with Velcro fasteners. This prevents leakage even during rain with strong wind.
Building a Tent
Put the tent poles of the structure through the sleeves outside the rain fly and insert the ends of the tent poles into the brass eyes on the loops of the lower edge of the rain fly. Then we fasten the buckles on the straps and on the ground inside the tent and the rain fly is set up. We fasten the inner tent to the loops on the inside of the rain fly. We anchor the erected tent with pegs and cords and fasten it with plastic clips.
